CARTEK Power Distribution Module (4 Channel with CAN)

Description

Introduction

The new CARTEK Power Distribution Module is now available.

The new ‘mini’ Power Distribution Modules from CARTEK have been designed to replace fuses and relays therefore simplifying the vehicles wiring. These mini Power Distribution Modules can be used as expansion units for larger PDM’s or can be used separately.

Key Features

• Small, lightweight, robust design – just 110g
• Fully potted for protection from water/dirt, shock and vibration
• All connections via sealed 12 pin Deutsch DT connector
• Configurable outputs in 5A steps (20A max) per channel; selectable Soft Start; outputs can be combined for higher current
• Reset by power cycle or button on the device
• Configurable input triggers (high/low, rising/falling edge, PWM up to 200Hz)
• Selectable output functions (flashing, time delay on/off)
• Configurable ‘Aux’ input can act as ignition input

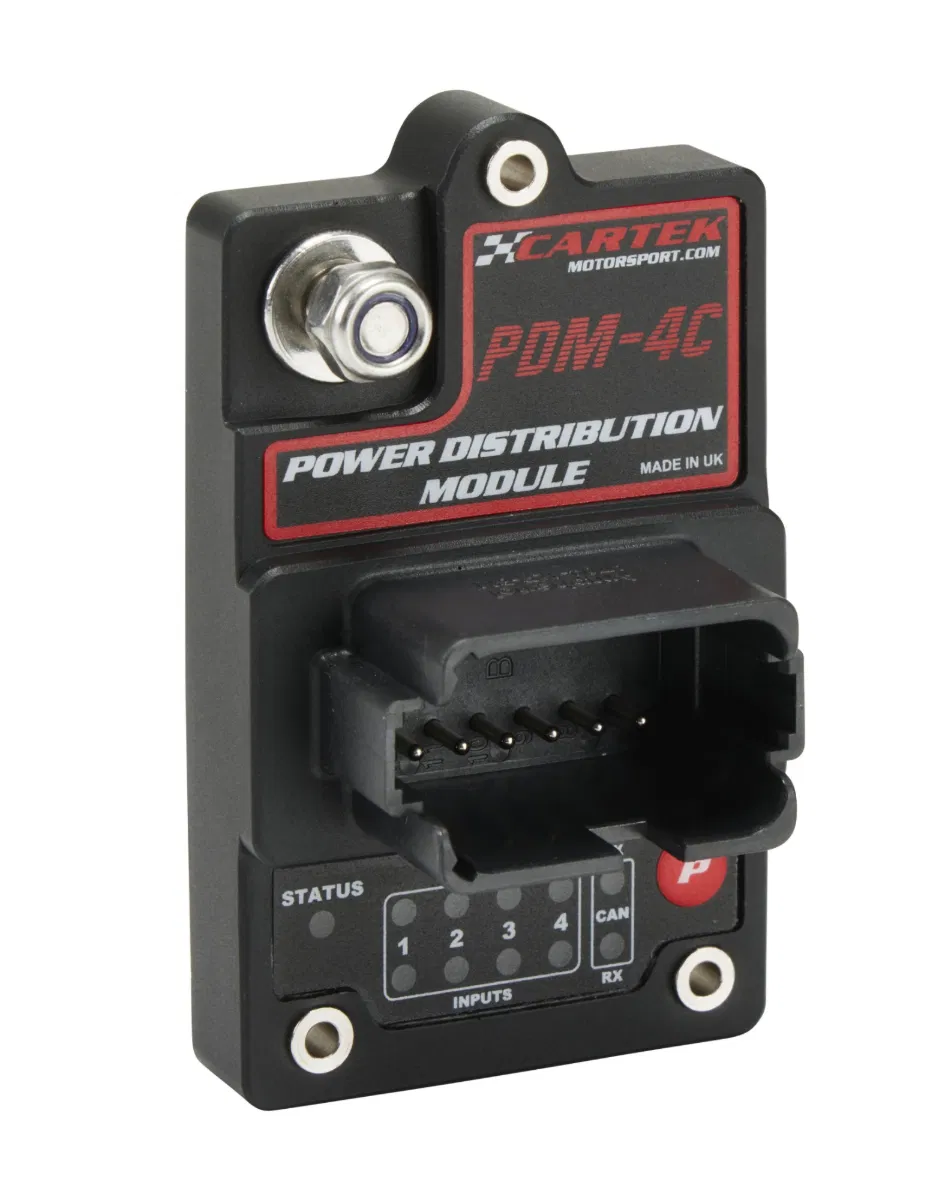

• RGB status LEDs indicate input/output status
• PDM‑04C: four outputs plus CAN Bus connectivity for diagnostics and CAN control
• Programming via integrated pushbutton – no laptop required

Kit Contents

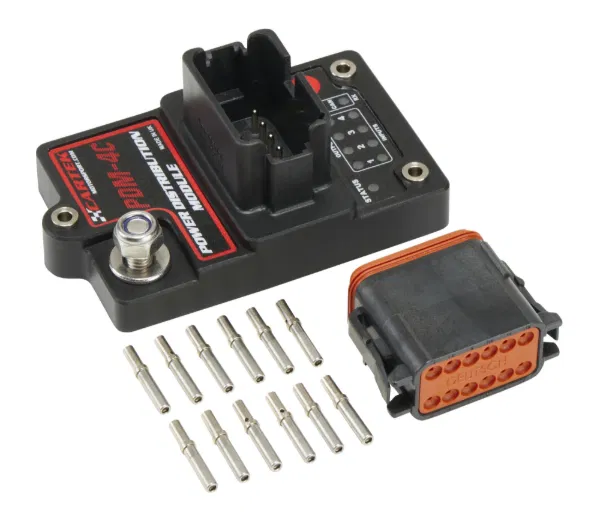

• 1 × PDM (CK‑PDM‑4C)
• 1 × mating connector housing
• 12 × crimps
