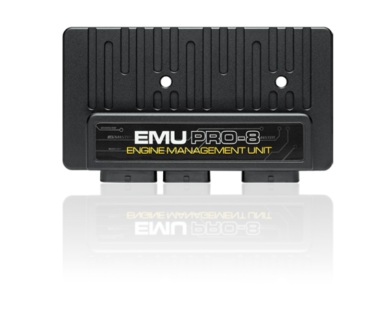

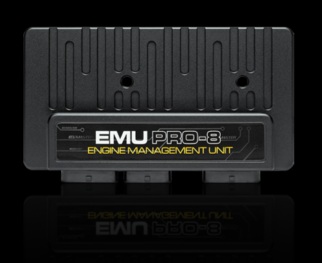

ECUMASTER EMU PRO 8

Kirjeldus

General

• High-end standalone engine control unit designed for demanding motorsport and performance tuning.

• Targeted at applications with smaller engines (up to 8 cylinders).

• CNC-machined aluminium housing, IP65 water-resistant construction.

• Professional grade fuel and ignition control algorithms for precise engine management.

• Supports four-stroke, two-stroke, and rotary engine types.

Control Features

• Advanced fueling model with closed-loop short and long-term trims and fuel film model for injector accuracy.

• Fully flexible software with user-adjustable table sizes and axes.

• Support for stand-alone sequential gearbox/paddle-shift strategies with PWM solenoid control.

• Up to 2 × drive-by-wire (DBW) channels with auto-calibration.

• Up to 4 × variable valve timing (VVT) channels with auto-calibration.

Inputs & Outputs

• Total of 31 outputs and 24 inputs.

• Up to 4 EGT or precision analog inputs.

• Internal support for up to 4 wideband oxygen sensors using LSU 4.9 controllers.

• 2 × CAN 2.0A/B ports and 1 × LIN bus.

• 2 × knock sensor inputs.

Data Logging & Diagnostics

• Logging to external USB memory.

• Data logging up to 500 Hz and online parameter analysis.
