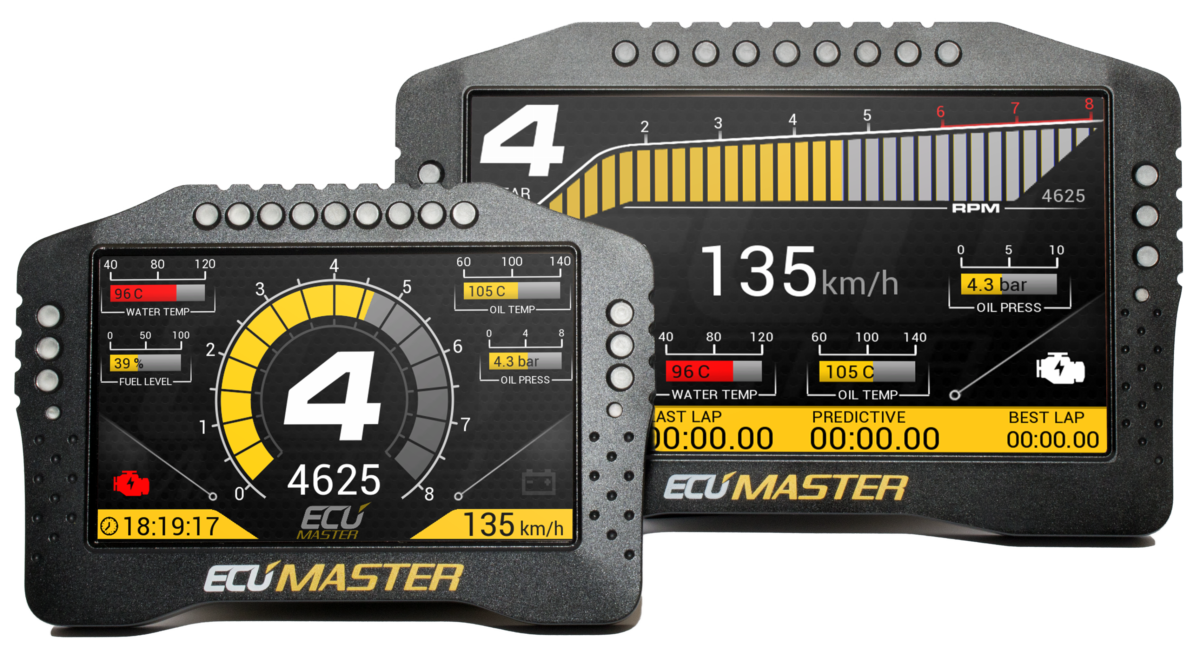

ECUMASTER ADU 5"

Kirjeldus

General

• Advanced motorsport display and data visualization unit

• Designed for professional racing and performance vehicle applications

• Compact 5″ high-brightness anti-glare TFT display for excellent visibility in all lighting conditions

• Automotive-grade electronics with CNC-machined aluminium enclosure

• 32-bit automotive processor with dedicated graphics engine

• USB support for configuration, firmware updates, and data logging

Display & Visualization

• 5″ TFT display with high resolution and wide viewing angles

• Fully user-configurable display pages and layouts

• Multiple pages with manual or automatic page switching based on conditions

• Overlay system for warnings and critical information independent of active page

• Customizable gauges, text fields, icons, and graphics

• Predictive lap timing support using GPS or IR beacon input

• Configurable timers (lap time, pit timer, session timer)

LED Indicators & Alarms

• 15 ultra-bright RGB LEDs configurable as shift lights or warning indicators

• Fully programmable LED behavior using logic conditions

• Visual alarms for critical engine or vehicle parameters

Inputs & Outputs

• 8 × analog inputs (10-bit resolution)

• 8 × digital inputs with software-selectable triggering

• 2 × protected low-side outputs (approx. 3 A)

• 1 × analog output (0–5 V)

Communication

• 2 × independent CAN 2.0B interfaces

• Compatible with ECUMaster ECUs and many third-party engine management systems

• User-configurable CAN streams and templates

• USB interface for PC connection

Data Logging

• Data logging to USB flash drive

• Logging frequency up to 500 Hz

• Real-time clock for accurate timestamping

• Compatible with ECUMaster Data Master software for log analysis

Internal Sensors & Features

• Integrated 3-axis accelerometer and 3-axis gyroscope

• Ambient light sensor for automatic brightness adjustment

• Internal temperature monitoring

• Rugged design suitable for vibration-intensive motorsport environments

Applications

• Motorsport dashboards for circuit racing, rally, and track cars

• Display and logging solution for ECUMaster and CAN-based ECUs

• Driver information, warning, and telemetry display in professional race cars
